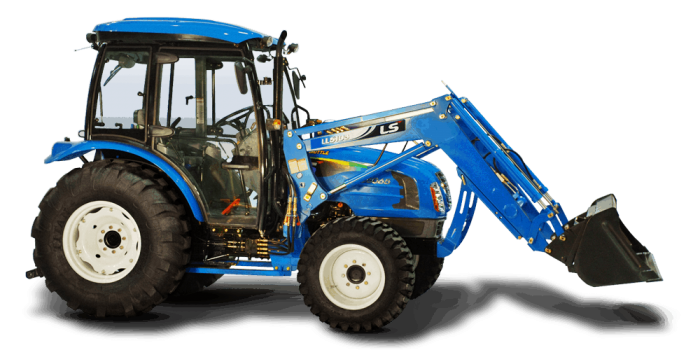

LS XU6158C-58HP

Description

ENGINE

  • Type: Vertical Water-Cooled 4Cycle Diesel Engine
  • Model (Tier 4): L4C25-T
  • Engine HP (Gross): 58
  • PTO HP: 51.2
  • Rated Speed (RPM): 2,500
  • Displacement (cu. in): 152.8
  • Fuel Tank Capacity (gal): 21.1
  • Alternator(V-A): 12 – 70

DRIVE TRAIN

  • Transmission: Synchro Shuttle / Power Shuttle
  • No. of Speed: F16 x R16
  • Brakes: Wet, Multi Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear, rpm: 540

HYDRAULIC SYSTEM

    Control System: Position/Draft

  • Implement pump (gpm): 9.9
  • Steering pump (gpm): 4.6
  • Total flow (gpm): 14.5
  • Category, 3 pt hitch: CAT II
  • Hitch Lift capacity, lbs(Hitch end): 4,079
  • Remote Valves: 2 pairs (Front), 2/3 pairs (Rear)

DIMENSIONS

  • Overall length with 3pt (in.): 138.6
  • Wheelbase (in.): 80.3
  • Min. overall width with Ag tires (in.): 70
  • Height to top of Cab with Ag tires (in.): 100.6

TIRE SIZE

  • Ag Front/Rear: 9.5 – 20 / 16.9 – 24
  • Industrial Front/Rear: 10.5/80 – 18 / 19.5L – 24
  • Turf Front/Rear: 36 x 13.5 – 15 / 16.9 – 24

WEIGHT

  • Total weight without ballast (lbs.): 5,121
